概述
The LP6221A is a current mode boost DC-DC converter. Its PWM circuitry with built-in 10A current power MOSFET makes this converter highly power efficiently. The LP6221A implements a constant frequency 450KHz PWM control scheme. The LP6221A can drive up to 20V output voltage The LP6221A includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The LP6221A is available in ESOP-8 / DFN-10 package.

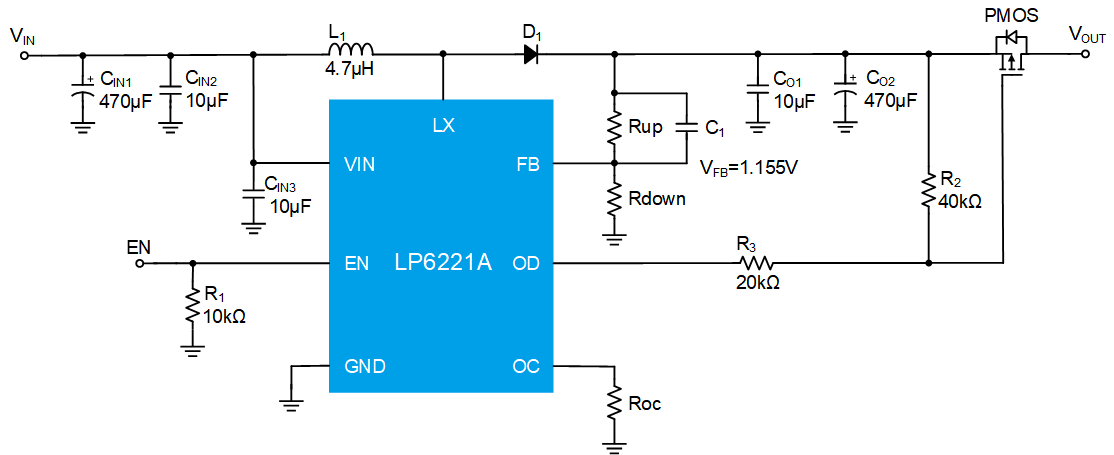

应用
◆ Battery products
◆ Host Products
◆ Panel
◆ Host Products
◆ Panel
数据参数
数据参数
输入电压(V)
2.6~15
最高输出电压(V)
20
工作频率 (Hz)
500K
开关管电流(mA)
10000
欠压锁定
Yes
FB电压(V)
1.155
5V带载电流
4A
特点
Large current,HV Boost Control,Adj. current limit,OCP,OTP
封装
ESOP8/DFN-10
特征
特征
◆ Up to 94% efficiency
◆ Output completely off at Shutdown Mode
◆ Output voltage Up to 20V
◆ Over Current Protection
◆ 450KHz fixed frequency switching
◆ High switch on current: 10A
◆ Available in ESOP-8/DFN-10(3*3mm) Package
◆ Output completely off at Shutdown Mode
◆ Output voltage Up to 20V
◆ Over Current Protection
◆ 450KHz fixed frequency switching
◆ High switch on current: 10A
◆ Available in ESOP-8/DFN-10(3*3mm) Package
