LP3102
Dual Channel Charge Pump Power Solution For TFT LCD Panel
概述

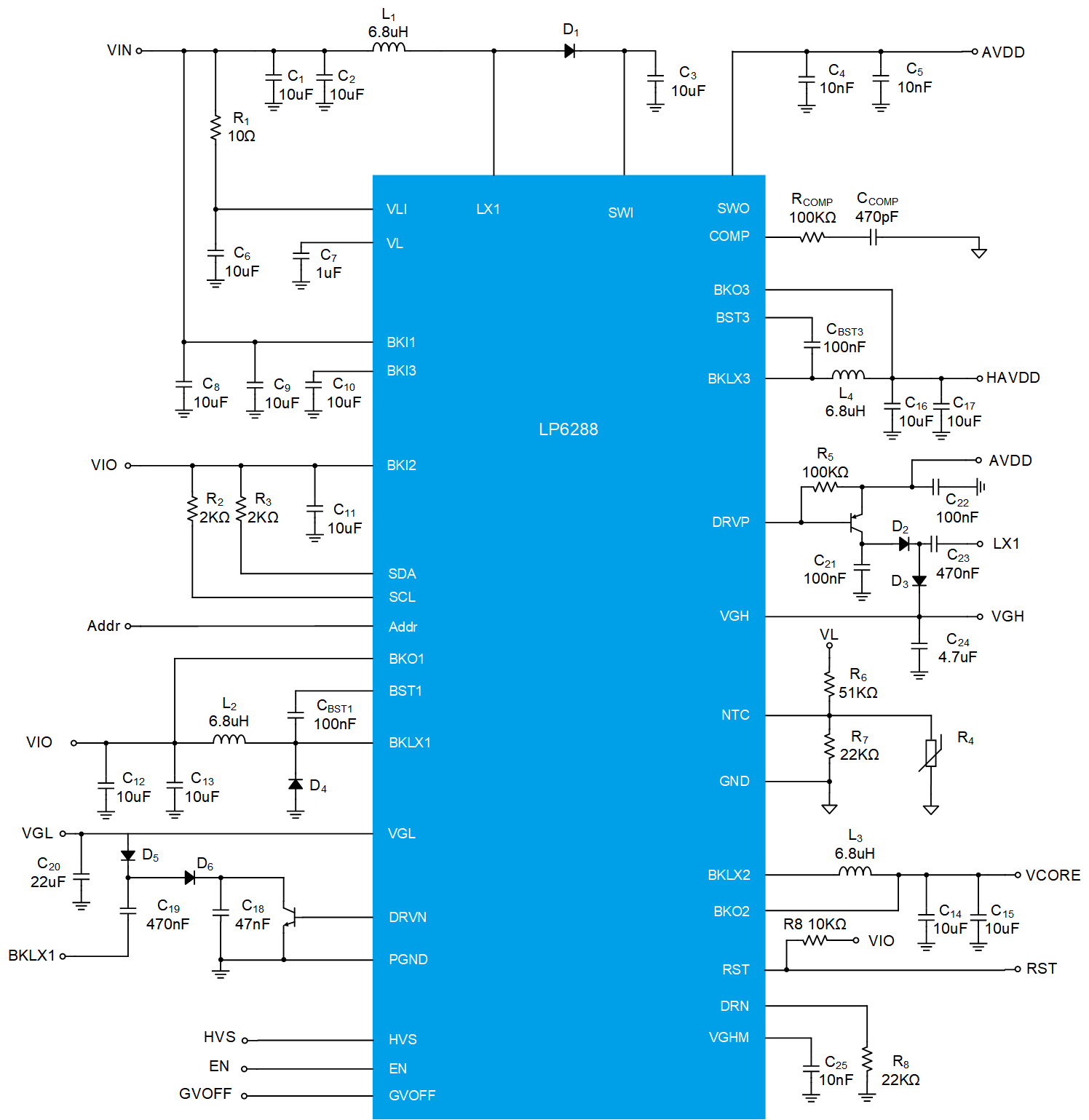

The LP6288is a multi-channel converter provides six regulated voltage, it includes a boost and three buck regulators and VGH and VGL charge pump for TFT LCDs. All output can be programmable via IIC.VAVDD boost and VHAVDD buck for the Source Driver and the Gamma Buffer. VIO buck and VCORE buck for T-CON. VGH and VGL dual charge pump for the Gate Driver or the Level Shifter. VGH rail can be temperature compensated with GIP technology.Otherwise, High Voltage Stress Mode (HVS) for VAVDD and VHAVDD and the integrated VAVDD Isolation Switch is implemented. VCORE, VHAVDD, VGH, VGL, GPM and the VGH temperature compensation can be enabled and disabled by IIC programming.Other features include short circuit protection, thermal shutdown protection and under-voltage lockout (UVLO). The LP6288 is available in a space saving QFN-40 (0.5mm pitch) package.
应用
◆ TFT LCD TV
◆ TFT LCD Monitor
◆ TFT LCD Panel
◆ TFT LCD Monitor
◆ TFT LCD Panel
数据参数
数据参数
输入电压 (V)
8.0~14
输出电压(V)
13.5~19.8
工作频率(Hz)
750K
限流值(mA)
4250 (Adj)
效率 (%)
90
特点
I2C Programmable:AVDD,VGH,VGL,VGHM, Buck1, Buck2, Buck3(HAVDD), Reset
封装
TQFN-40 (6*6)
特征
特征
◆ Wide VIN Range: 8V to 14V
◆ Current-Mode Boost Regulator
◆ Isolation Switch
◆ 13.5 to 19.8 Programmable Output Voltage
◆ Current Limit Protection
◆ Optional External Switching NMOS Control
◆ Buck Regulator for VIO
◆ 2.2V to 3.7V Programmable Output
◆ 3A Current Limit Protection
◆ Buck Regulator for VCORE
◆ 0.8V to 3.3V Programmable Output
◆ 2.5A Current Limit Protection
◆ Buck Regulator for VHAVDD
◆ 4.8V to 11.1V Programmable Output
◆ 1.7A Current Limit Protection
◆ Positive Charge Pump for VGH
◆ 20V to 40V Programmable Output
◆ 0V to 15V Gate Shaping Voltage
◆ Temperature Compensation
◆ Negative Charge Pump for VGL
◆ -5.5V to -14.5V Output Voltage
◆ Reset Function for XAO
◆ Under-Voltage Protection
◆ Over-Temperature Protection
◆ IIC Compatible Interface for Register Control
◆ Available in QFN-40 (6×6mm)
◆ RoHS Compliant and Halogen Free
◆ Pb-Free Package
◆ Current-Mode Boost Regulator
◆ Isolation Switch
◆ 13.5 to 19.8 Programmable Output Voltage
◆ Current Limit Protection
◆ Optional External Switching NMOS Control
◆ Buck Regulator for VIO
◆ 2.2V to 3.7V Programmable Output
◆ 3A Current Limit Protection
◆ Buck Regulator for VCORE
◆ 0.8V to 3.3V Programmable Output
◆ 2.5A Current Limit Protection
◆ Buck Regulator for VHAVDD
◆ 4.8V to 11.1V Programmable Output
◆ 1.7A Current Limit Protection
◆ Positive Charge Pump for VGH
◆ 20V to 40V Programmable Output
◆ 0V to 15V Gate Shaping Voltage
◆ Temperature Compensation
◆ Negative Charge Pump for VGL
◆ -5.5V to -14.5V Output Voltage
◆ Reset Function for XAO
◆ Under-Voltage Protection
◆ Over-Temperature Protection
◆ IIC Compatible Interface for Register Control
◆ Available in QFN-40 (6×6mm)
◆ RoHS Compliant and Halogen Free
◆ Pb-Free Package
