LP6201
概述
The LP6218 is a current mode boost DC-DC converter. Its PWM circuitry with built-in 2.1A current power MOSFET makes this converter highly power efficiently. The LP6218 implements a constant frequency 1MHz PWM control scheme. The high frequency PWM operation also saves board space by reducing external component sizes. The LP6218 features automatic shifting to pulse frequency modulation mode at light loads. Highly integration and internal compensation network minimizes as 6 external component counts. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency. The LP6218 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The LP6218 is available in a small 6-pin SOT23-6 package.

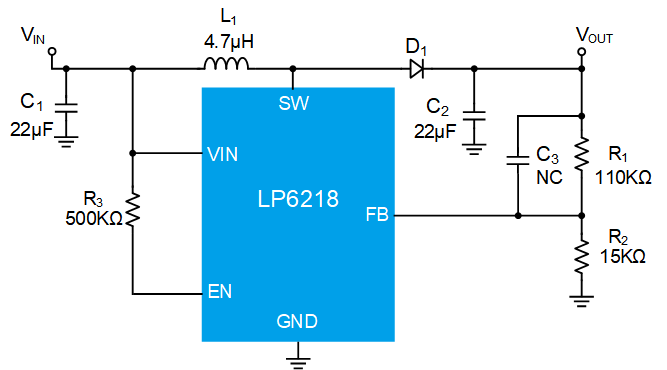

应用
◆ Battery products
◆ Host Products
◆ Panel
◆ Host Products
◆ Panel
数据参数
数据参数
输入电压(V)
2.2~24
最高输出电压(V)
24
工作频率 (Hz)
1M
开关管电流(mA)
2100
欠压锁定
Yes
FB电压(V)
0.6
5V带载电流
1A
特点
High voltage,Large current,High efficiency
封装
SOT23-6
特征
特征
◆ Up to 94% efficiency
◆ Output to Input Disconnect at Shutdown Mode
◆ Shut-down current:◆ Input and Output voltage Up to 24V
◆ Internal Compensation, Soft-start
◆ 1MHz fixed frequency switching
◆ High switch on current:2.1A
◆ Available in SOT23-6 Package
◆ Output to Input Disconnect at Shutdown Mode
◆ Shut-down current:◆ Input and Output voltage Up to 24V
◆ Internal Compensation, Soft-start
◆ 1MHz fixed frequency switching
◆ High switch on current:2.1A
◆ Available in SOT23-6 Package
